MODEL

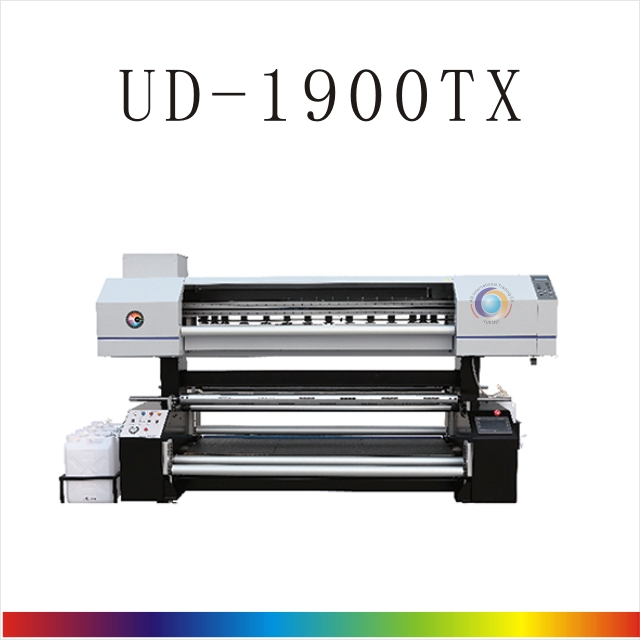

UD-1900TX

Printing technology

VSD Pizeo Inkjet Method

Printhead

EPS-5113

Number of printhead

4

Accuracy & Print Speed

2Pass

163 m²

3Pass

112 m²

4Pass

85 m²

6Pass

60 m²

Material type

Width

≦1925 mm

Thickness

≦2.0 mm

Diameter

≦300 mm

Material weight

≦60 KG

Core diameter

3 inches

Printing width

Max 1915 mm

Cartridge

Refilled system

Ink type

C M Y K water based ink

Step Accuracy

Error less than 0.3%

Heating

Bottom heater, 25-80 ℃

PC port

Gigabit network

Power

AC220, 15A; 50/60Hz

Efficiency

Stand by

50W

Working

2700W

Noise

Stand by

≦45dB

Working

≦60dB

Size

Package size

3400×1380×1730(mm)

Printer size

3210×1220×1560(mm)

Weight

Gross weight

526kg

Net weight

466kg

Environment

Temperature 15-32℃ Relative humidity 40-80% no condensation

PC requirement

Windows 7, Intel i7, 500G hard drive, 8G RAM gigabit network

Automatic feeding and take up paper system

Heater
